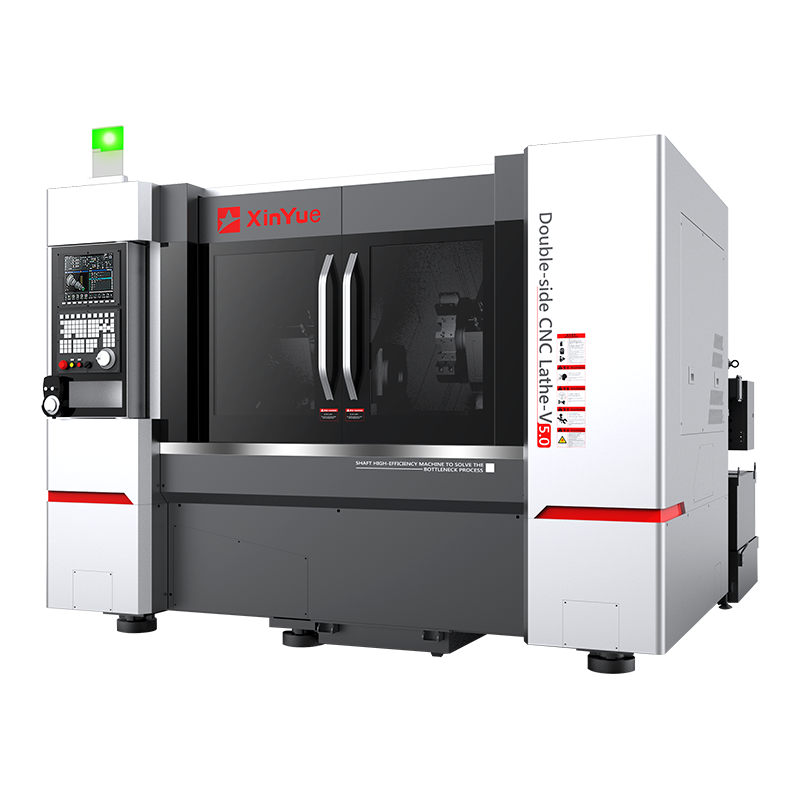

High-Speed Fully Automated Operations double-sided lathe

High-Speed Fully Automated Operations double-sided lathe

This High-Speed Fully Automated Operations double-sided lathe adopts the central spindle, and the left and right ends are simultaneously turned. It adopts Hanberger quick-change chuck, which can realize: turning end face, outer circle (part), drilling center hole, drilling, threading, tapping, inside turning Hole, groove, optional milling function.
This product adopts a dual-channel numerical control system, no need to turn around and turn, and both ends can be turned at the same time in one clamping. It has the advantages of high concentricity, double high-efficiency turning, and reduced procedures.
Contact Us
PREV：Precision Automatic Double-Sided Lathe Machine
NEXT：No next article
  • Product Parameter
  • Contact us

  • Technical parameters Unit

    BTC52-2500 BTC100-2500 BTC150-2500

    Processing diameter mm

    52 100 150

    Processing length mm

    800-2500 1000-3000 1500-4500

    Hole diameter tolerance mm

    0.01 0.015 0.015

    Maximum spindle speed mm

    4000r/min 3000r/min 2000r/min

    Roundness mm

    0.005 0.005 0.008

    Roughness μm

    0.8-3.2 0.8-3.2 0.8-3.2

    Concentricity at both ends mm

    0.015 0.015 0.015

    Hydraulic center frame

    1

    Servo turret

    12T (power turret is optional)

    CNC system Taiwan new generation

    FANUC/SIEMENS

    Note: The specific model can be selected according to the diameter, length and processing position of the part. Special-shaped parts can be non-standard customized machine tools.
