The chip removal machines produced by the company mainly include chain plate type chip removal machines, magnetic chip removal machines, scraper type chip removal machines, magnetic scraper type chip removal machines, screw type chip removal machines, etc. The types of machine tools used for export mainly include: CNC lathes, machining centers, circular saw machines, gear hobbing machines, double-head lathes, vertical lathes, gantry machines, high-speed machines (grinding machines), and other high-end machine tools.
Item | NC-106 |
Maximum machining diameter | Φ300 |
Maximum machining length | 350mm |
Maximum rotary diameter | 450mm |
Spindle chuck size | 6inch |
Maximum spindle speed | 4000min-¹ |
Spindle end shape | A2-5 |
Spindle through-hole diameter | Φ56 |
Spindle telescopic tube inner diameter | Φ45 |
Spindle bearing bore diameter | Φ90mm |
Spindle power | 7.5KW/11KW |
Rated spindle torque | 70N.m |
Maximum spindle torque | 100N.m |
Number of turret faces | 8 |
Turret O.D. Tool shank | 25×25 |
Turret drill holder bore diameter | Φ32 |
Feed axis travel Z/X | Z: 370mm X:200mm |
Rapid traverse speed Z/X | Z:20m/min X:20m/min |
Power capacity | 18KVA |
Machine dimensions (LxWxH) | 2180×1560×1580(without chip conveyor) |
Machine weight | 3300kg |
Item | Unit | NC-108 | |
Maximum rotary diameter on the bed | mm | Φ560 | |
Maximum machining diameter (disk) | mm | Φ400 | |
Maximum machining diameter (shaft) | mm | Φ280 | |
Maximum turning diameter on slide | mm | Φ280 | |
Distance between two centers | mm | 500 | |
Maximum machining length | mm | 450 | |
Maximum through-hole diameter of tie rod | mm | Φ52 | |
Safety guard | Completely closed | ||
Numerical control system | |||
Machine weight | kg | About 3800 | |
Dimension of machine(L×W×H) | mm | 2244×1650×1760 | |
Principal axis | Spindle nose form | A2-6 | |
Spindle through-hole diameter | mm | Φ66 | |
Spindle bore taper | MT-6 | ||
Three-jaw chuck clamping capacity | r/min | 8" | |
Tie rod action form | kW | Hydraulic pressure | |
Maximum spindle speed | mm | 4000 | |
Power of main motor | mm | 11/15 | |
Feed | X-axis travel | m/min | 225 |
Z-axis travel | mm | 490 | |
XZ axis rapid traverse speed | mm | 25 | |
Precision | Positioning accuracy (X/Z) | 0.008/0.010 | |
Repeat positioning accuracy (X/Z) | 0.006/0.008 | ||
Power tool tower | Number of tool positions | mm | 8 |
Drive type | s | Servo | |
Center height | mm | 80 | |
Tool change time(T-T) | mm | 0.2 | |
Boring tool holder specifications | 32 | ||
Square tool holder specification | mm | 25 | |
Tailstock | Taper of Tailstock Sleeve | MT-5 | |
Maximum/Minimum Workpiece Length | 500/60 | ||
Safety shields | kg | Completely closed | |
CNC controls | mm | SYTEC 6TA/FANUC Oi-TF/GSK988TA | |
Machine weight | About 3800 | ||
Machine size (L×W×H) | 2244×1650×1760 |
Item | Unit | DPC-E650 | DPC-SP650 | DPC-SP880H | DPC-L1210H | DPC-L1510H | DPC-L1614H | DPC-L2015H | DPC-L2016H | DPC-L2515H | DPC-L2516H | DPC-L2518H | DPC-L2520H | |
TRVEL | ||||||||||||||
X-axis trave | mm | 600 | 600 | 800 | 1200 | 1500 | 1600 | 2000 | 2000 | 2500 | 2500 | 2500 | 2600 | |
Y-axis trave | mm | 500 | 500 | 800 | 1000 | 1000 | 1400 | 1500 | 1650 | 1500 | 1650 | 1800 | 2000 | |
Z-axis travel | mm | 250 | 320 | 450 | 500 | 500 | 600 | 800 | 700 | 800 | 700 | 800 | 900 | |
Door width | mm | 1000(left and right) | 1000(left and right) | 1400(left and right) | 1500(left and right) | 1650(left and right) | 1500(left and right) | 1650(left and right) | 1800(left and right) | 1500(left and right) | ||||
WORKBENCHES | ||||||||||||||
Workbench area (length x Wide) | Kw | 600×500 | 600×500 | 850×750 | 1300×900 | 1500×900 | 1700×1200 | 2200×1300 | 2100×1400 | 2700×1300 | 2600×1400 | 2700×1500 | 2600×1700 | |
Distance from workbench to spindle end face | mm | 180-430 | 180-500 | 300-750 | 300-800 | 300-800 | 350-950 | 300-1100 | 300-1000 | 300-1100 | 300-1000 | 300-1100 | 300-1200 | |
T-groove specifications | N.m | 18×5×165 | 18×5×165 | 18×7×165 | 18×7×125 | 18×7×125 | 18×7×125 | 18×7×125 | 22×7×180 | 22×7×180 | ||||
Maximum load of wortbench average boad) | rpm | 250 | 400 | 800 | 2500 | 2500 | 4000 | 6000 | 5000 | 6000 | 5000 | 8000 | 8000 | |
ACCURACY | ||||||||||||||
Positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.008/300 | 0.008/300 | 0.008/300 | 0.008/300 | 0.008/300 | 0.008/300 | |
Repetitive positioning accuracy | mm | 0.003/300 | 0.003/300 | 0.003 /300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | |
Spindle | ||||||||||||||
Maximum spindle speed | RPM | 18000 | 18000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | |
Spindle power | Kw | 7.5 | 7.5 | 10.6 | 10.6 | 10.6 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
Maximum output torque of the spindle | N.m | 18 | 18 | 103 | 103 | 103 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | |
ATC | ||||||||||||||
Knife handle form | / | BT30 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | HSKA63 | ||
Tool magazine type | / | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | ||
Knife inventory capacity | PCS | / | 20 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
Maximum tool length | mm | / | 250 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
Maximum weight of tool | kg | / | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
Magazine motor | W | / | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
SCREW GUIDE RAIL | ||||||||||||||
X axis ball screw diameter lead | mm | 32×8P | 32x8P | 36×10P | 40×10P | 40×10P | 50×12P | 50×12P | 50×12P | 63×12P | 63×12P | 63×12P | 63×12P | |
Y-axis ball screw diameter lead | mm | 32×8P | 32×8P | 36×10P | 40×10P | 40×10P | 50×12P | 50×12P | 50×10P | 50×12P | 50×12P | 50×12P | 50×12P | |
Z-axis ball screw diameter lead | mm | 32×8P | 32×8P | 36×10P | 40×10P | 40×10P | 50×12P | 50×12P | 50×10P | 50×12P | 50×12P | 50×12P | 50×12P | |
XY/Z axis lnear guide rail configuration track width | mm | RG30/RG30/RG30 | RG30/RG30/RG30 | RG35/RG35/RG35 | RG45/RG45/RG45 | RG45/RG45/RG45 | RG45/RG45/RG45 | RG55/RG55/RG55 | RG45/RG45/RG45 | RG55/RG55/RG55 | RG45/RG45/RG45 | RG55/RG55/RG55 | RG55/RG55/RG55 | |
Track form | mm | Rollers/balls | Rollers/balls | Rollers/balls | Rollers/balls | Rollers/balls | Rollers/balls | Rollers | Rollers | Rollers | Rollers | Rollers | Rollers | |
OTHER | ||||||||||||||
Air pressure source/air conditioner | kg/A | 5-7/4 | 5-7/4 | 5-7/4 | 5-7/4 | 5-714 | 5-7/4 | 5-7/4 | 5-7/4 | 5-7/4 | 5-7/4 | 5-7/4 | 5-7/4 | |
Total power consumption (maximum) | KVA | 25 | 25 | 35 | 45 | 45 | 50 | 65 | 65 | 65 | 65 | 65 | 65 | |
Machine tol dmensions lengthxwidaxHighi | mm | 1800×2200×2400 | 2400×2400×2700 | 2930×2100×2850 | 3950×2275×3600 | 4380×2275×3600 | 4830×2700×4000 | 6270×3050×4500 | 5190×2944×4500 | 7500×3500×4500 | 7314×3500×4500 | 7310×3510×4500 | 7500×4100×4650 | |
Machine weight | kg | 3500 | 4500 | 8000 | 9000 | 9500 | 14000 | 19500/20500 | 14000 | 21000/22000 | 16000 | 21000 | 23500 | |
CNC system | Siemens/Mitsubishi/Fanako Treasure Source | Siemens/Mitsubishi/Fanako Treasure Source | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 | Siemens 828D-280 |

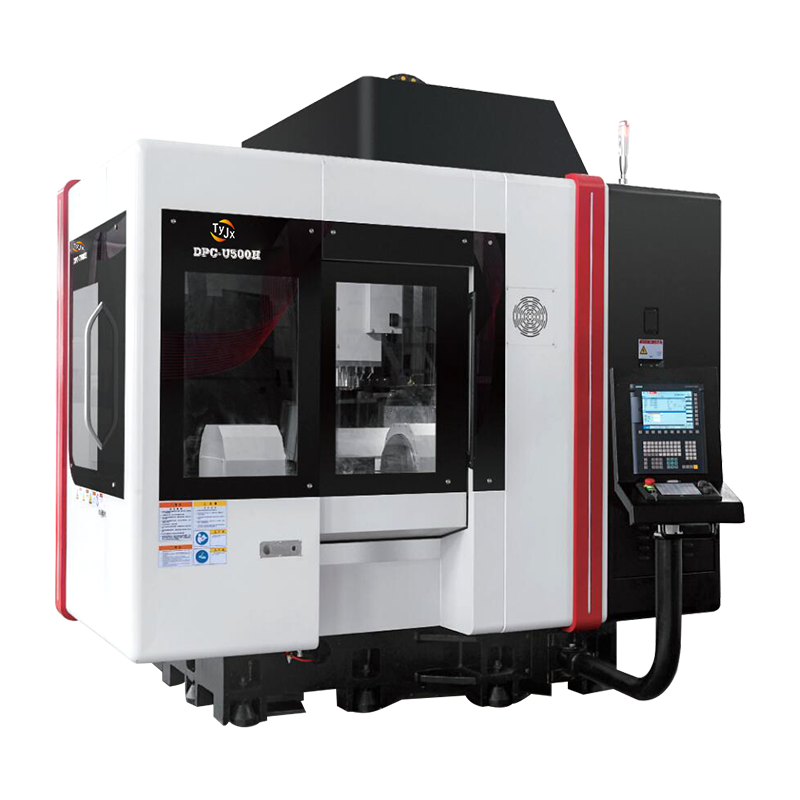

Item | Unit | DPC-U300H | DPC-U400H | DPC-U500H | DPC-U630H | DPC-U800H | |
TRVEL | |||||||
X/Y/Z axis travel | mm | 500/800/450 | 700/800/450 | 630/800/450 | 800/800/500 | 1000/1100/600 | |
A-axis rotation angle and rated speed | rpm | +30°-120°/50 | +30°-120°/100 | +30°-120°/100 | +30°-120°/50 | +30°-120°/50 | |
C-axis rotation angle and rated speed | rpm | 360°/200 | 360°/100 | 360°/100 | 360°/50 | 360°/50 | |
A/C axis drive mode | Roller CAM | Roller CAM | A-axis dual drive/C-axis single drive (DD motor) | A-axis dual drive/C-axis single drive (DD motor) | A-axis dual drive/C-axis single drive (DD motor) | ||
Distance from workbench to spindle end face | mm | 150-600 | 150/600 | 150/600 | 150-650 | 150/750 | |
Maximum workpiece range | mm | 500 | 700 | 630 | 800 | 1050 | |
Maximum loading capacity | kg | Horizontal placement 200,0-90° tilt load 100 | Horizontal placement 400,0-90° tilt load 250 | Horizontal position 500,0-90° tilt load 300 | Horizontal placement 800,0-90° tilt load 400 | Horizontal placement 1200,0-90° tilt load 600 | |
Door width | mm | 850 | 850 | 850 | 950(Actual 920) | 1150 | |
WORKBENCHES | |||||||
Worktable shape | Circular type | Circular type | Circular type | Circular type | Circular type | ||
T-groove specifications | mm | 18×5×165 | 18×5×165 | 18×5×165 | 18×5×165 | 18×5×165 | |
PRECISION | |||||||
Three axis positioning accuracy/AC axis | mm | 0.008/5' | 0.008/5' | 0.008/5' | 0.008/5" | 0.008/5" | |
Triple axis repeated positioning accuracy/AC axis | mm | 0.005 /5' | 0.005/5' | 0.005/5' | 0.005/5' | 0.005/5" | |
SPINDLE | |||||||
Maximum spindle speed | rpm | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | |
Spindle power | Kw | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 | |
Maximum output torque of the spindle | N.m | 38-103 | 38/103 | 38/103 | 38/103 | 38/103 | |
FEED | |||||||
The fastest movement speed of the XY/Z axis | m/min | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | |
The fastest cutting speed of the workpiece | m/min | 10 | 10 | 10 | 10 | 10 | |
ATC | |||||||
Knife handle form | BT40/HSKA63 | BT40/HSKA63 | BT40 /HSKA63 | BT40 /HSKA63 | BT40/HSKA63 | ||
Tool magazine form | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | ||
Knife inventory capacity | The | 24 | 24 | 24 | 24 | 24 | |
Maximum length/weight of tool | mm/kg | 250/8 | 250/8 | 250/8 | 250/8 | 250/8 | |
Magazine motor | W | 60 | 60 | 60 | 60 | 60 | |
SCREW ROD&GUIDE RAIL | |||||||
X/Y/Z axis ball screw, diameter, lead | mm | Φ36×10P/φ36×10P/Φ36×10P | Φ36×10P/φ36×10P/Φ36×10P | Φ36×10P/φ36×10P/Φ36×10P | Φ50×10P/φ45×10P/Φ45×10P | Φ50×10P/φ45×10P/Φ45×10P | |
X/Y/Z axis linear guide rail configuration, track width | mm | HG35/HG35/HG35 | HG35/HG35/HG35 | HG35/ HG35/HG35 | HGW55/RG45/RG45 | HGW55/RG45/RG45 | |
Track type | mm | Ball | Ball | Ball | Roller | Roller | |
OTHER | |||||||
Air pressure source | kg | 7 | 7 | 7 | 7 | 7 | |
Cold air machine | A | 4 | 4 | 4 | 4 | 4 | |
Total power consumption (maximum) | 30 | 40 | 60 | 50 | 60 | ||
Machine tool external dimensions (length wide High) | mm | 2930×2550×2850 | 2930×2550×2850 | 2930×2550×2850 | 4200×3100×4600 | 4200×3800×4700 | |
Net weight/gross weight (left and right) | kg | 9000/9500 | 9000/9500 | 9000/9500 | 13000/13800 | 17000/18000 |
Item | Unit | DPC-U300H | DPC-U400H | DPC-U500H | DPC-U630H | DPC-U800H | |
TRVEL | |||||||
X/Y/Z axis travel | mm | 500/800/450 | 700/800/450 | 630/800/450 | 800/800/500 | 1000/1100/600 | |
A-axis rotation angle and rated speed | rpm | +30°-120°/50 | +30°-120°/100 | +30°-120°/100 | +30°-120°/50 | +30°-120°/50 | |
C-axis rotation angle and rated speed | rpm | 360°/200 | 360°/100 | 360°/100 | 360°/50 | 360°/50 | |
A/C axis drive mode | Roller CAM | Roller CAM | A-axis dual drive/C-axis single drive (DD motor) | A-axis dual drive/C-axis single drive (DD motor) | A-axis dual drive/C-axis single drive (DD motor) | ||
Distance from workbench to spindle end face | mm | 150-600 | 150/600 | 150/600 | 150-650 | 150/750 | |
Maximum workpiece range | mm | 500 | 700 | 630 | 800 | 1050 | |
Maximum loading capacity | kg | Horizontal placement 200,0-90° tilt load 100 | Horizontal placement 400,0-90° tilt load 250 | Horizontal position 500,0-90° tilt load 300 | Horizontal placement 800,0-90° tilt load 400 | Horizontal placement 1200,0-90° tilt load 600 | |
Door width | mm | 850 | 850 | 850 | 950(Actual 920) | 1150 | |
WORKBENCHES | |||||||
Worktable shape | Circular type | Circular type | Circular type | Circular type | Circular type | ||
T-groove specifications | mm | 18×5×165 | 18×5×165 | 18×5×165 | 18×5×165 | 18×5×165 | |
PRECISION | |||||||
Three axis positioning accuracy/AC axis | mm | 0.008/5' | 0.008/5' | 0.008/5' | 0.008/5" | 0.008/5" | |
Triple axis repeated positioning accuracy/AC axis | mm | 0.005 /5' | 0.005/5' | 0.005/5' | 0.005/5' | 0.005/5" | |
SPINDLE | |||||||
Maximum spindle speed | rpm | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | 15000(Direct connection) | |
Spindle power | Kw | 10.6 | 10.6 | 10.6 | 10.6 | 10.6 | |
Maximum output torque of the spindle | N.m | 38-103 | 38/103 | 38/103 | 38/103 | 38/103 | |
FEED | |||||||
The fastest movement speed of the XY/Z axis | m/min | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | |
The fastest cutting speed of the workpiece | m/min | 10 | 10 | 10 | 10 | 10 | |
ATC | |||||||
Knife handle form | BT40/HSKA63 | BT40/HSKA63 | BT40 /HSKA63 | BT40 /HSKA63 | BT40/HSKA63 | ||
Tool magazine form | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | Disk library (optional) | ||
Knife inventory capacity | The | 24 | 24 | 24 | 24 | 24 | |
Maximum length/weight of tool | mm/kg | 250/8 | 250/8 | 250/8 | 250/8 | 250/8 | |
Magazine motor | W | 60 | 60 | 60 | 60 | 60 | |
SCREW ROD&GUIDE RAIL | |||||||
X/Y/Z axis ball screw, diameter, lead | mm | Φ36×10P/φ36×10P/Φ36×10P | Φ36×10P/φ36×10P/Φ36×10P | Φ36×10P/φ36×10P/Φ36×10P | Φ50×10P/φ45×10P/Φ45×10P | Φ50×10P/φ45×10P/Φ45×10P | |
X/Y/Z axis linear guide rail configuration, track width | mm | HG35/HG35/HG35 | HG35/HG35/HG35 | HG35/ HG35/HG35 | HGW55/RG45/RG45 | HGW55/RG45/RG45 | |
Track type | mm | Ball | Ball | Ball | Roller | Roller | |
OTHER | |||||||
Air pressure source | kg | 7 | 7 | 7 | 7 | 7 | |
Cold air machine | A | 4 | 4 | 4 | 4 | 4 | |
Total power consumption (maximum) | 30 | 40 | 60 | 50 | 60 | ||
Machine tool external dimensions (length wide High) | mm | 2930×2550×2850 | 2930×2550×2850 | 2930×2550×2850 | 4200×3100×4600 | 4200×3800×4700 | |
Net weight/gross weight (left and right) | kg | 9000/9500 | 9000/9500 | 9000/9500 | 13000/13800 | 17000/18000 |

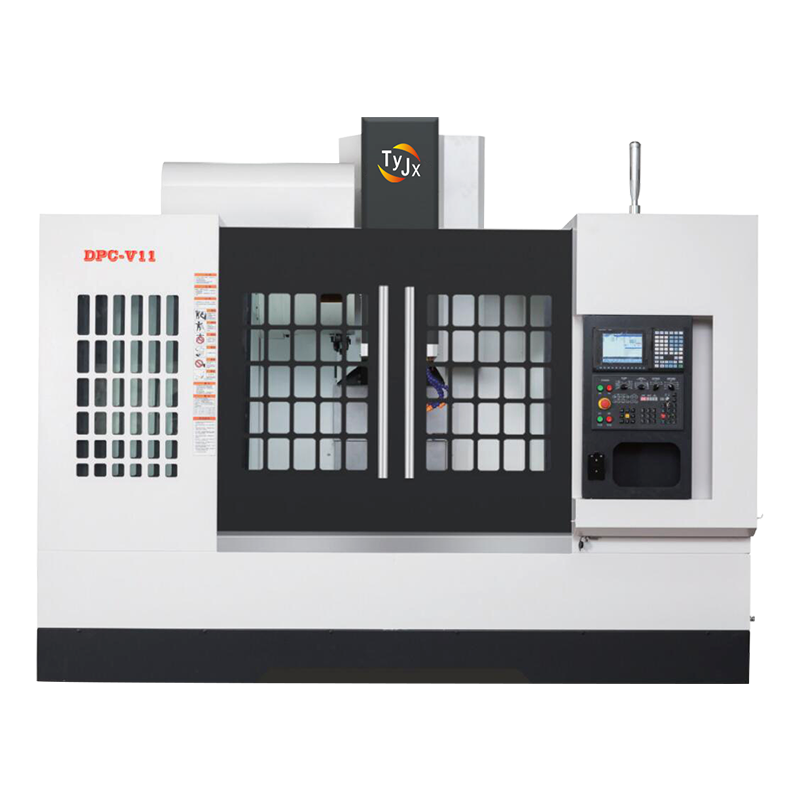

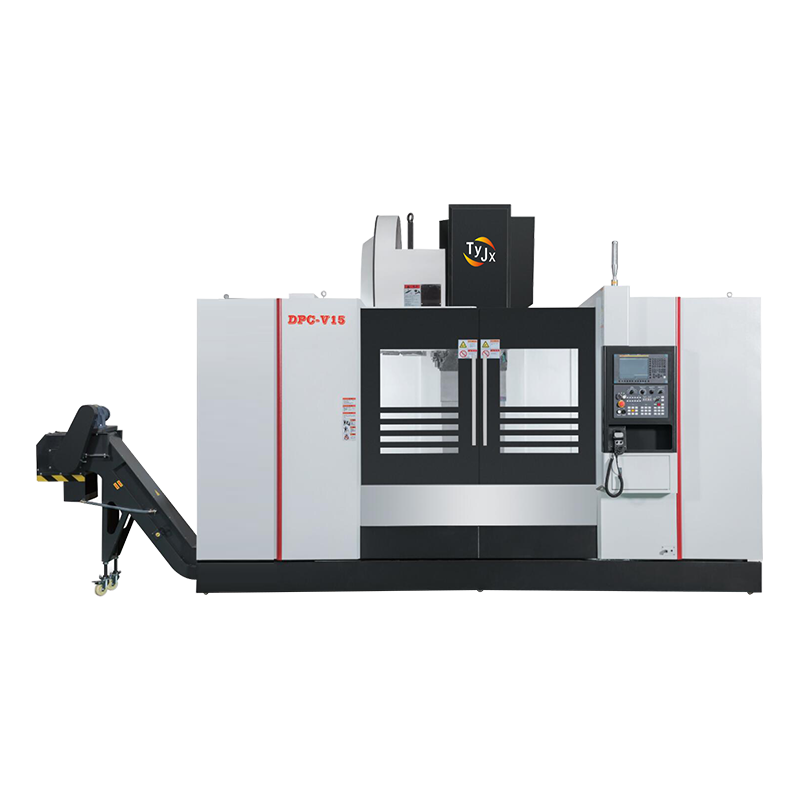

Item | Unit | V-6 | V-8 | V-85 | V-10 | V-106 | V-11 | V-12 | V-13 | V-15 | V-16 |
TRVEL | |||||||||||
X-axis stroke of workbench | mm | 600 | 800 | 800 | 1000 | 1000 | 1100 | 1200 | 1300 | 1500 | 1600 |
Y-axis stroke of workbench | mm | 400 | 500 | 550 | 600 | 650 | 600 | 700 | 700 | 800 | 800 |
Z-axis stroke of workbench | mm | 450 | 520 | 550 | 600 | 600 | 600 | 600 | 650 | 700 | 680 |
Distance from spindle nose to workbench | mm | 120-620 | 125-645 | 120-670 | 120-670 | 120-970 | 100-700 | 120-970 | 120-870 | 120-870 | 95-995 |
Distance from spindle center to column | mm | 570 | 600 | 700 | 800 | 950 | 660 | 1000 | 850 | 900 | 1150 |
WORKBENCHES | |||||||||||
Workbench area | mm | 750×420 | 1000×500 | 1000×500 | 1100×500 | 1100×650 | 1200×600 | 1380×700 | 1500×700 | 1500×750 | 1800×900 |
Maximum payload | kg | 500 | 500 | 500 | 800 | 800 | 800 | 1000 | 1000 | 1400 | 1600 |
T-groove\width xnumber of grooves xspacing) | 18×5×90 | 18×5×90 | 18×5×100 | 18×5×100 | 18×5×125+18×2×100 | 18×3×130 | 18×5×125+18×2×100 | 18×7×100 | 18×7×100 | 18×5×125+18×2×100 | |
FEED | |||||||||||
X/Y/Z-axis rapid feed | m/min | 48×48×48 | 48×48×48 | 36×36×36 | 36×36×36 | 36×36×36 | 36×36×36 | 24×24×24 | 24×24×24 | 24×24×24 | 24×24×24 |
Spindle | |||||||||||
Spindle speed | rpm | 10000(12000/15000) | 10000(12000/15000) | 10000(12000/15000) | 10000(12000) | 8000 /12000 | 8000/12000 | 8000/12000 | 8000/10000 | 8000 /10000 | 8000 /10000 |
Spindle specifications | BT | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40 | BT40/BT50 | BT40/BT50 | BT50 | BT50 |
Spindle motor | KW | 10HP(7.5kw) | 10HP(7.5kw) | 10HP(7.5kw) | 15HP(11kw) | 15HP(11kw) | 15HP(11kw) | 15HP(11kw) | 22HP(18.5kw)User requirements for special selection | ||
ACCURACY | |||||||||||
Positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.012 | 0.01 | 0.012 | 0.012 | 0.012 | 0.015 |
Repetitive positioning accuracy | mm | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.008 | 0.005 | 0.008 | 0.008 | 0.008 | 0.001 |
OTHER | |||||||||||
Disk tool magazine | ATC | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T/32T(Servo) | 24T/32T(Servo) | 24T/32T(Servo) |
Three axis power | kw | 2-2-3 | 2-2-3 | 2-2-3 | 3-3-3 | 4.5-4.5-7.0User requirements for special selection | 4.5-4.5-7.0User requirements for special selection | ||||
Electricity demand | Kva | 20 | 20 | 20 | 35 | 35 | 35 | 45-50 | 45-50 | 45-50 | 45-50 |
Air pressure demand | kg/bar | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
Pump demand | HP | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
Mechanical footprint size | mm | 2500×2200×2400 | 2700×2400×2500 | 2950×2650×2700 | 3300×3000×3000 | 3300×3000×3000 | 3300×3000×3000 | 3600×3300×3200 | 3600×3300×3200 | 4100×3450×3350 | 6000×4000×4000 |
Mechanical weight | kg | 4500 | 5300 | 6000 | 8000 | 9000 | 9000 | 11000 | 12000 | 13000 | 15800 |
CONTROL SYSTEM | FANUC Series-OI-MF / MITSU BISH I M80/SIEMENS828D | FANUC Series-OI-MF / MITSU BISH I M80/SIEMENS828D | FANUC Se rie s -OI-MF / MI TSU BISH I M80/SIEMENS828D |
Item | Unit | V-6 | V-8 | V-85 | V-10 | V-106 | V-11 | V-12 | V-13 | V-15 | V-16 |
TRVEL | |||||||||||
X-axis stroke of workbench | mm | 600 | 800 | 800 | 1000 | 1000 | 1100 | 1200 | 1300 | 1500 | 1600 |
Y-axis stroke of workbench | mm | 400 | 500 | 550 | 600 | 650 | 600 | 700 | 700 | 800 | 800 |
Z-axis stroke of workbench | mm | 450 | 520 | 550 | 600 | 600 | 600 | 600 | 650 | 700 | 680 |
Distance from spindle nose to workbench | mm | 120-620 | 125-645 | 120-670 | 120-670 | 120-970 | 100-700 | 120-970 | 120-870 | 120-870 | 95-995 |
Distance from spindle center to column | mm | 570 | 600 | 700 | 800 | 950 | 660 | 1000 | 850 | 900 | 1150 |
WORKBENCHES | |||||||||||
Workbench area | mm | 750×420 | 1000×500 | 1000×500 | 1100×500 | 1100×650 | 1200×600 | 1380×700 | 1500×700 | 1500×750 | 1800×900 |
Maximum payload | kg | 500 | 500 | 500 | 800 | 800 | 800 | 1000 | 1000 | 1400 | 1600 |
T-groove\width xnumber of grooves xspacing) | 18×5×90 | 18×5×90 | 18×5×100 | 18×5×100 | 18×5×125+18×2×100 | 18×3×130 | 18×5×125+18×2×100 | 18×7×100 | 18×7×100 | 18×5×125+18×2×100 | |
FEED | |||||||||||
X/Y/Z-axis rapid feed | m/min | 48×48×48 | 48×48×48 | 36×36×36 | 36×36×36 | 36×36×36 | 36×36×36 | 24×24×24 | 24×24×24 | 24×24×24 | 24×24×24 |
Spindle | |||||||||||
Spindle speed | rpm | 10000(12000/15000) | 10000(12000/15000) | 10000(12000/15000) | 10000(12000) | 8000 /12000 | 8000/12000 | 8000/12000 | 8000/10000 | 8000 /10000 | 8000 /10000 |
Spindle specifications | BT | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40 | BT40/BT50 | BT40/BT50 | BT50 | BT50 |
Spindle motor | KW | 10HP(7.5kw) | 10HP(7.5kw) | 10HP(7.5kw) | 15HP(11kw) | 15HP(11kw) | 15HP(11kw) | 15HP(11kw) | 22HP(18.5kw)User requirements for special selection | ||
ACCURACY | |||||||||||
Positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.012 | 0.01 | 0.012 | 0.012 | 0.012 | 0.015 |
Repetitive positioning accuracy | mm | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.008 | 0.005 | 0.008 | 0.008 | 0.008 | 0.001 |
OTHER | |||||||||||
Disk tool magazine | ATC | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T/32T(Servo) | 24T/32T(Servo) | 24T/32T(Servo) |
Three axis power | kw | 2-2-3 | 2-2-3 | 2-2-3 | 3-3-3 | 4.5-4.5-7.0User requirements for special selection | 4.5-4.5-7.0User requirements for special selection | ||||
Electricity demand | Kva | 20 | 20 | 20 | 35 | 35 | 35 | 45-50 | 45-50 | 45-50 | 45-50 |
Air pressure demand | kg/bar | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
Pump demand | HP | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
Mechanical footprint size | mm | 2500×2200×2400 | 2700×2400×2500 | 2950×2650×2700 | 3300×3000×3000 | 3300×3000×3000 | 3300×3000×3000 | 3600×3300×3200 | 3600×3300×3200 | 4100×3450×3350 | 6000×4000×4000 |
Mechanical weight | kg | 4500 | 5300 | 6000 | 8000 | 9000 | 9000 | 11000 | 12000 | 13000 | 15800 |
CONTROL SYSTEM | FANUC Series-OI-MF / MITSU BISH I M80/SIEMENS828D | FANUC Series-OI-MF / MITSU BISH I M80/SIEMENS828D | FANUC Se rie s -OI-MF / MI TSU BISH I M80/SIEMENS828D |

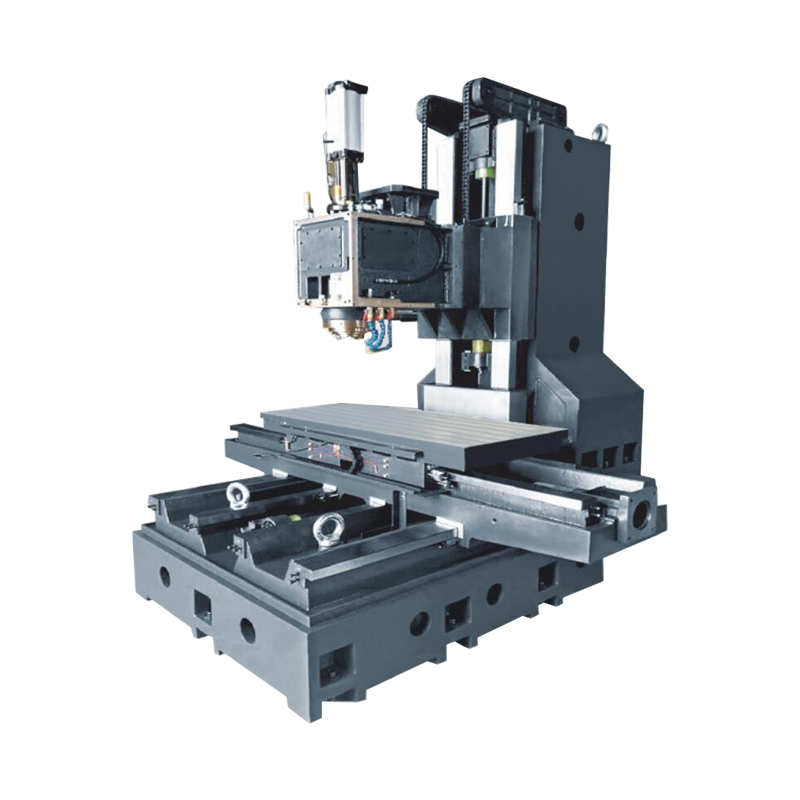

Item | Unit | VMC-850/850L | VMC-1060/1060L | VMC-1270 /1270L | VMC-1370 /1370L | VMC-1580/1580L | VMC-1690 /1690L | VMC-1890 /1890L |
TRVEL | ||||||||
X-axis stroke of workbench | mm | 800 | 1000 | 1200 | 1300 | 1500 | 1600 | 1800 |
Y-axis stroke of workbench | mm | 500 | 600 | 700 | 700 | 800 | 900 | 900 |
Z-axis stroke of workbench | mm | 500 | 600 | 650 | 700 | 700 | 800 | 800 |
Distance from spindle nose to workbench | mm | 120-670 | 100-700 | 100-750 | 200-900 | 130-730 | 180-980 | 210-1000 |
Distance from spindle center to column | mm | 560 | 660 | 750 | 900 | 810 | 1000 | 970 |
WORKBENCHES | ||||||||
Workbench area | mm | 1000×550 | 1200×600 | 1300×700 | 1400×700 | 1700×800 | 1800×900 | 2000×900 |
Maximum payload | kg | 500 | 800 | 1000 | 1200 | 1500 | 2800 | 1600 |
T-groove(width x number of grooves x spacing) | 18×5×100 | 18×3×130 | 18×5×150 | 18×5×100 | 22×5×140 | 22×5×160 | 22×5×165 | |
FEED | ||||||||
X/Y/Z-axis rapid feed | m/min | 36×36×24 | 24×24×18 | 24×24×18 | 20×20×15 | 20×20×15 | 20×20×15 | 20×20×15 |
Spindle | ||||||||
Spindle speed | rpm | 8000/10000 | 8000/10000 | 8000/10000 | 6000/8000 | 6000/8000 | 6000/8000 | 6000/8000 |
Spindle specifications | BT | BT40 | BT40/BT50 | BT40 /BT50 | BT40 /BT50 | BT50 | BT50 | BT50 |
Spindle motor | KW | 11HP(7.5kw) | 15HP(11kw) | 20HP(15kw) | 20HP(15kw) | 20HP(18.5kw) | 20HP(18.5kw) | 25HP(18.5kw) |
ACCURACY | ||||||||
Positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 | 0.005/300 |
Repetitive positioning accuracy | mm | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 | 0.003/300 |
OTHER | ||||||||
Disk tool magazine | ATC | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T(Servo) | 24T/32(Servo) | 24T/32T(Servo) | 24T/32T(Servo) |
Three axis power | kw | 3-3-3 | 3-3-3 | 3-3-3 | 3-3-3 | 4.5-4.5-4.5 | 4.5-4.5-4.5 | 4.5-7.0-4.5 |
Electricity demand | Kva | 20 | 30 | 30 | 30 | 40 | 40 | 45 |
Air pressure demand | kg/bar | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 | 6-7 |
Pump demand | HP | 2P | 2P | 2P | 2P | 2P | 2P | 2P |
Mechanical footprint size | mm | 2700×2400×2500 | 3200×2800×2800 | 3700×3500×3200 | 3850×3000×3300 | 4300×3300×3300 | 4500×3500×3500 | 6000×3800×3800 |
Mechanical weight | kg | 5500 | 7500 | 9000 | 11500 | 13000 | 14000 | 16000 |
CONTROL SYSTEM | FANUC Series-OI-MF / MITSU BISH I M80 /SIEMENS828D FANUC Series-O I-MF / MITSU BISHI M80/SIEMENS828D FANUC Se ries-OI-MF / MI TSU BISHI M8O/SIEMENS828D |
Hangzhou Tongyi Machinery Co., Ltd. was established in 2007.It's a famous China CNC Drill Tap Center Machine Manufacturers and Mill Turn Factory, we offer Wholesale Drill Tap Center Machine. It is an integrated industry and trade enterprise specializing in the production of machine tool accessories such as chip conveyors and exporting various machine tools. In 2017, our company established a new company - Zhejiang Anaiqi Machinery Equipment Co., Ltd. The company has over 5000 end customers, including over 200 supporting units. The chip removal machines produced by the company mainly include chain plate type chip removal machines, magnetic chip removal machines, scraper type chip removal machines, magnetic scraper type chip removal machines, screw type chip removal machines, etc. The main types of machine tools used for export include CNC lathes, machining centers, circular sawing machines, double head lathes, and other high-precision end machine tools. The company has professional technical personnel, with meticulous production, advanced management, and high-quality after-sales service, to provide customers with the highest cost-effectiveness products and fully meet their needs. Our company has always adhered to the principles of honesty, customer satisfaction, continuous improvement, and brand building. We sincerely welcome new and old customers to visit and patronize us, and create brilliance together!
Whether a chip conveyor includes self-cleaning mechanisms or features depends on the specific type and model. However, many modern chip conveyors are equipped with featur...
Read moreChip conveyors minimize noise and vibration during operation through a combination of thoughtful design and engineering features. Rigid Frame Construction: The chip conve...
Read moreAn automatic double-sided lathe maintains high precision and repeatability over long production runs through several key features and engineering practices.Rigid Construc...
Read moreLowering noise levels and reducing vibrations in high-capacity operating chip conveyors is essential to maintaining a safe and efficient work environment.Regular maintena...
Read more
